Encrypted property placeholders are a great way to store and use database, API or broker user IDs and passwords. Red Hat JBoss Fuse utilizes Jasypt Simplified Encryption to encrypt property values.
To use the Jasypt functionality in Red Hat JBoss Fuse you have to export the JASYPT_ENCRYPTION_PASSWORD
variable before starting the server. The jasypt-encryption
and the camel-jasypt
features should already be installed by default in the standalone Fuse install. In Fabric mode the camel-jasypt
and the jasypt-encryption
features need to be part of your profile.
Export the encryption password
[ fedora@sparekh]$ export JASYPT_ENCRYPTION_PASSWORD = s3cr3t
Verify Jasypt install on Fuse
To check if the features are installed on your fuse instance you can run the following command in the karaf shell:
features:list -i | grep jasypt

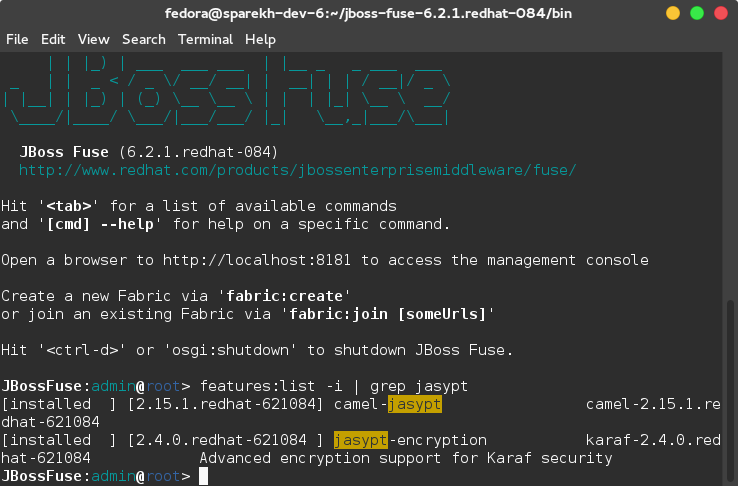

Checking for Jasypt features in Karaf shell
Or you can also check in the Hawtio webconsole by navigating to the OSGi → Features tab:
Checking for Jasypt features in Hawtio webconsole
Use encrypted properties in a Camel route
I have modified the sample blueprint route based on the camel-blueprint-archetype
to show a working camel route with encrypted properties. The project is hosted on GitHub here: camel-blueprint-encrypted
The changes I made to the vanilla camel-blueprint-archetype
are explained below.
Before we set up a Camel route to decrypt a property we have to encrypt it. Download the Jasypt v1.9.2 binaries from SourceForge . After you unzip the project, head over to the bin directory.
Encrypt the word ‘Camel’ using the encrypt.sh
script.
Note: Your encrypted output will not be the same as mine.
[ fedora@sparekh]$ ./encrypt.sh input = "Camel" password = s3cr3t algorithm = PBEWITHMD5ANDDES
----ENVIRONMENT-----------------
Runtime: Oracle Corporation OpenJDK 64-Bit Server VM 25.65-b01
----ARGUMENTS-------------------
algorithm: PBEWITHMD5ANDDES
input: Camel
password: s3cr3t
----OUTPUT----------------------
orS/w2nwBZ7YoJCTqtp54g==
There are some extra steps involved if you want to use encrypted properties in your Blueprint Camel routes.
First, add the Jasypt dependency
and Import-Package
information to the project pom.
...
<dependency>
<groupId> org.apache.servicemix.bundles</groupId>
<artifactId> org.apache.servicemix.bundles.jasypt</artifactId>
<version> 1.9.2_1</version>
<scope> runtime</scope>
</dependency>
<dependency>
<groupId> org.apache.karaf.jaas</groupId>
<artifactId> org.apache.karaf.jaas.jasypt</artifactId>
<version> 2.4.0.redhat-620133</version>
<scope> runtime</scope>
</dependency>
...
<!-- to generate the MANIFEST-FILE of the bundle -->
<plugin>
<groupId> org.apache.felix</groupId>
<artifactId> maven-bundle-plugin</artifactId>
<version> 2.3.7</version>
<extensions> true</extensions>
<executions>
<execution>
<id> bundle-manifest</id>
<phase> process-classes</phase>
<goals>
<goal> manifest</goal>
</goals>
</execution>
</executions>
<configuration>
<instructions>
<Bundle-SymbolicName> camel-blueprint-encrypted</Bundle-SymbolicName>
<Private-Package> com.shaishav.camel.blueprint.test</Private-Package>
<Import-Package> org.jasypt.encryption.pbe;version=1.9.2, org.jasypt.encryption.pbe.config;version=1.9.2, org.osgi.service.blueprint</Import-Package>
</instructions>
</configuration>
</plugin>
...
Second, replace the plaintext value with the encrypted value in your property file enclosed by ENC()
body.text=ENC(orS/w2nwBZ7YoJCTqtp54g==)
Third, you have to add the enc
and cm
namespaces to your Blueprint XML.
xmlns:cm="http://aries.apache.org/blueprint/xmlns/blueprint-cm/v1.1.0"
xmlns:enc="http://karaf.apache.org/xmlns/jasypt/v1.0.0"
Fourth, add the cm
and the enc
section to your Blueprint XML.
<cm:property-placeholder id= "test.props.placeholder" persistent-id= "test.props" update-strategy= "none" />
<enc:property-placeholder>
<enc:encryptor class= "org.jasypt.encryption.pbe.StandardPBEStringEncryptor" >
<property name= "config" >
<bean class= "org.jasypt.encryption.pbe.config.EnvironmentStringPBEConfig" >
<property name= "algorithm" value= "PBEWithMD5AndDES" />
<property name= "passwordEnvName" value= "JASYPT_ENCRYPTION_PASSWORD" />
</bean>
</property>
</enc:encryptor>
</enc:property-placeholder>
The cm
section specifies the name of the .cfg
file used to populate properties. In the above example the Camel route expects a file, test.props.cfg
, in the etc/
directory of JBoss Fuse.
The enc
section configures the decryption settings for the encrypted properties. In the above example the enc:property-placeholder
is configured with the same settings that we encrypted the property.
Blueprint will now handle decrypting the property at Camel route startup. To verify you can run mvn clean verify
on the sample project. Make sure you export the JASYPT_ENCRYPTION_PASSWORD
before running the test as the password is required to decrypt successfully.
[ mel-1) thread #0 - timer://foo] timerToLog INFO The message contains Camel at 2015-12-21 22:14:37
Full Test Output:
[ fedora@sparekh]$ mvn clean verify
...
-------------------------------------------------------
T E S T S
-------------------------------------------------------
Running com.redhat.camel.blueprint.test.RouteTest
[ main] CamelBlueprintHelper INFO Using Blueprint XML file: /home/sparekh/Repos/camel-blueprint-encrypted/target/classes/OSGI-INF/blueprint/blueprint.xml
[ Thread-0] RawBuilder INFO Copy thread finished.
[ main] Activator INFO Camel activator starting
[ main] Activator INFO Camel activator started
[ main] BlueprintExtender INFO No quiesce support is available, so blueprint components will not participate in quiesce operations
[ Blueprint Extender: 1] BlueprintContainerImpl INFO Bundle camel-blueprint-encrypted is waiting for namespace handlers [ http://aries.apache.org/blueprint/xmlns/blueprint-cm/v1.1.0, http://karaf.apache.org/xmlns/jasypt/v1.0.0, http://camel.apache.org/schema/blueprint]
[ Blueprint Extender: 1] BlueprintContainerImpl INFO Bundle org.apache.karaf.jaas.modules is waiting for namespace handlers [ http://aries.apache.org/blueprint/xmlns/blueprint-ext/v1.0.0, http://aries.apache.org/blueprint/xmlns/blueprint-cm/v1.1.0, http://karaf.apache.org/xmlns/jaas/v1.0.0]
[ main] CamelBlueprintHelper INFO Updating ConfigAdmin Configuration PID = test.props, factoryPID = null, bundleLocation = file:pojosr by overriding properties { body.text= ENC( /80CXuZkx1uSPqkhczVr3Q==)}
[ main] RouteTest INFO ********************************************************************************
[ main] RouteTest INFO Testing: testRoute( com.redhat.camel.blueprint.test.RouteTest)
[ main] RouteTest INFO ********************************************************************************
[ main] RouteTest INFO Skipping starting CamelContext as system property skipStartingCamelContext is set to be true.
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-1) is starting
[ main] DefaultManagementStrategy INFO JMX is disabled
[ main] BlueprintCamelContext INFO AllowUseOriginalMessage is enabled. If access to the original message is not needed, then its recommended to turn this option off as it may improve performance.
[ main] BlueprintCamelContext INFO StreamCaching is not in use. If using streams then its recommended to enable stream caching. See more details at http://camel.apache.org/stream-caching.html
[ main] BlueprintCamelContext INFO Route: timerToLog started and consuming from: Endpoint[timer://foo?period= 5000]
[ main] BlueprintCamelContext INFO Total 1 routes, of which 1 is started.
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-1) started in 0.304 seconds
[ main] MockEndpoint INFO Asserting: Endpoint[mock://result] is satisfied
[ mel-1) thread #0 - timer://foo] timerToLog INFO The message contains Camel at 2015-12-21 22:14:37
[ main] RouteTest INFO ********************************************************************************
[ main] RouteTest INFO Testing done : testRoute( com.redhat.camel.blueprint.test.RouteTest)
[ main] RouteTest INFO Took: 1.349 seconds ( 1349 millis)
[ main] RouteTest INFO ********************************************************************************
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-1) is shutting down
[ main] DefaultShutdownStrategy INFO Starting to graceful shutdown 1 routes ( timeout 10 seconds)
[ el-1) thread #1 - ShutdownTask] DefaultShutdownStrategy INFO Route: timerToLog shutdown complete, was consuming from: Endpoint[timer://foo?period=5000]
[ main] DefaultShutdownStrategy INFO Graceful shutdown of 1 routes completed in 0 seconds
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-1) uptime 1.389 seconds
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-1) is shutdown in 0.038 seconds
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle RouteTest
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle org.apache.karaf.jaas.modules
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle camel-blueprint-encrypted
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-2) is shutting down
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-2) uptime not started
[ main] BlueprintCamelContext INFO Apache Camel 2.15.1.redhat-620133 ( CamelContext: camel-2) is shutdown in 0.005 seconds
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle org.apache.aries.blueprint
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle org.apache.camel.camel-blueprint
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle org.apache.karaf.jaas.config
[ main] BlueprintExtender INFO Destroying BlueprintContainer for bundle org.apache.karaf.jaas.jasypt
[ main] Activator INFO Camel activator stopping
[ main] Activator INFO Camel activator stopped
[ main] CamelBlueprintHelper INFO Deleting work directory target/bundles/1450754066802
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 11.631 sec
Results :
Tests run: 1, Failures: 0, Errors: 0, Skipped: 0
[ INFO]
[ INFO] --- maven-bundle-plugin:2.3.7:bundle ( default-bundle) @ camel-blueprint-encrypted ---
[ INFO] ------------------------------------------------------------------------
[ INFO] BUILD SUCCESS
[ INFO] ------------------------------------------------------------------------
[ INFO] Total time : 27.021 s
[ INFO] Finished at: 2015-12-21T22:14:38-05:00
[ INFO] Final Memory: 23M/442M
[ INFO] ------------------------------------------------------------------------
Now you can store database, broker or API passwords in property files without them being in plaintext.
Reference Docs: Red Hat JBoss Fuse 6.2.1 Security Guide
